0.7 - 1.50 Lac / Bag
| Business Type | Manufacturer, Exporter, Retailer |
| Country of Origin | India |
| Type | Lapping Machines |
| Certification | CE Certified |
| Click to view more | |
Product Details
Application
Surface Polishing Components
Weight
100-1000kg, 130 Kg
Color
Grey
Voltage
380V, 440V
Condition
New
Automatic Grade
Automatic
Power
1-3kw
Driven Type
Electric
Warranty
1year
Brand Name
Jay Balaji
Dimension
540 x 540 x 830 mm (L X W X H)
Supply
415 V AC, 50 HZ,3 Phase
Load
0.375 KW (0.5 HP)

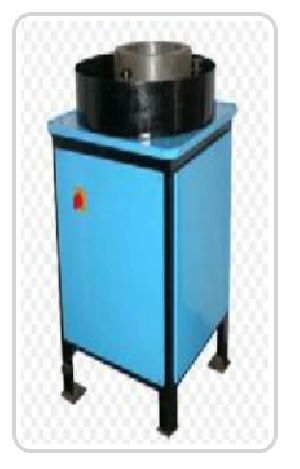

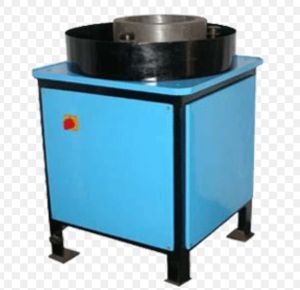

Our Diamond Lapping Machine Tolapthe Scaife flat within 0.005mm,to result in non-convex facets
Salient features of Diamond Lapping Machine
- Lapped scaife results in better surface finishand symmetry on polished diamond.
- Lapped scaife optimizes the production,by better surface contact with the stone.
- Ultimate solution for perfectly Flats caifesurface (accuracy 0.005 mm).
- Very low scaife-reconditioning cost (between USS 0.25 to US$ 0.3 5 per Diamond Impregnated Scaife).
- Controlled material removal - results in more number of
- reconditioning per scaife - increasing scaife life by at least 50%.
- A low cost solution w ith a very short payback time.
- Nodedicatedoperatorrequired, reducingproduction cost.
